SOL-ARK SA-12K 120/240/208V Solar Inverter Charger
SOL-ARK SA-12K 120/240/208V Solar Inverter Charger
SOL-ARK SA-12K 120/240/208V Solar Inverter Charger
SOL-ARK SA-12K 120/240/208V Solar Inverter Charger

SOL-ARK SA-12K 120/240/208V Solar Inverter Charger

$8,249.00
$6,950.00
Quantity must be 1 or more

SKU: SA-12K-2P

Mfg. SKU: 12K-2P-N

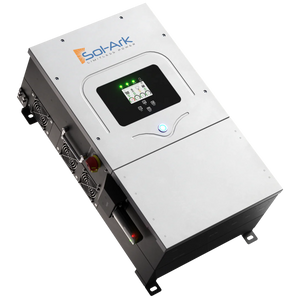

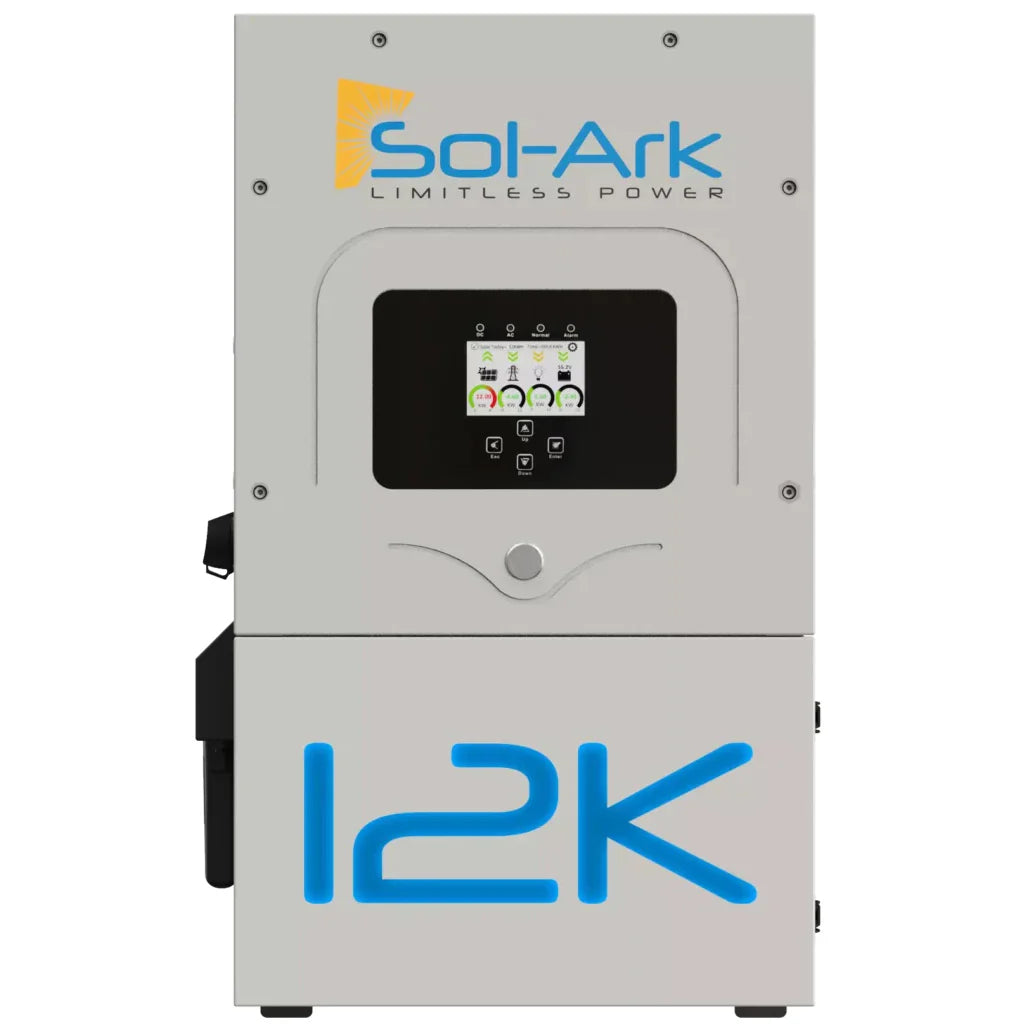

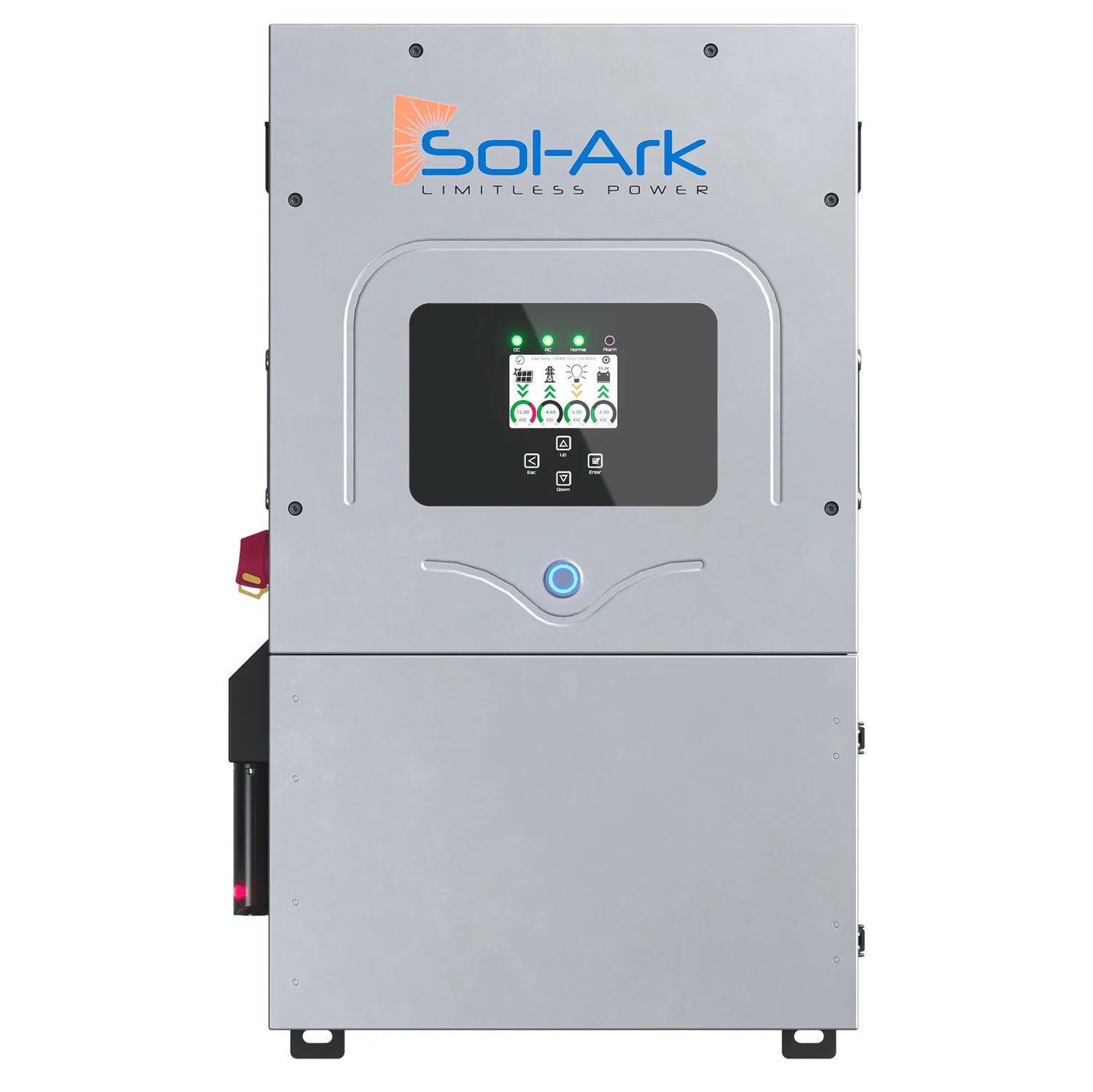

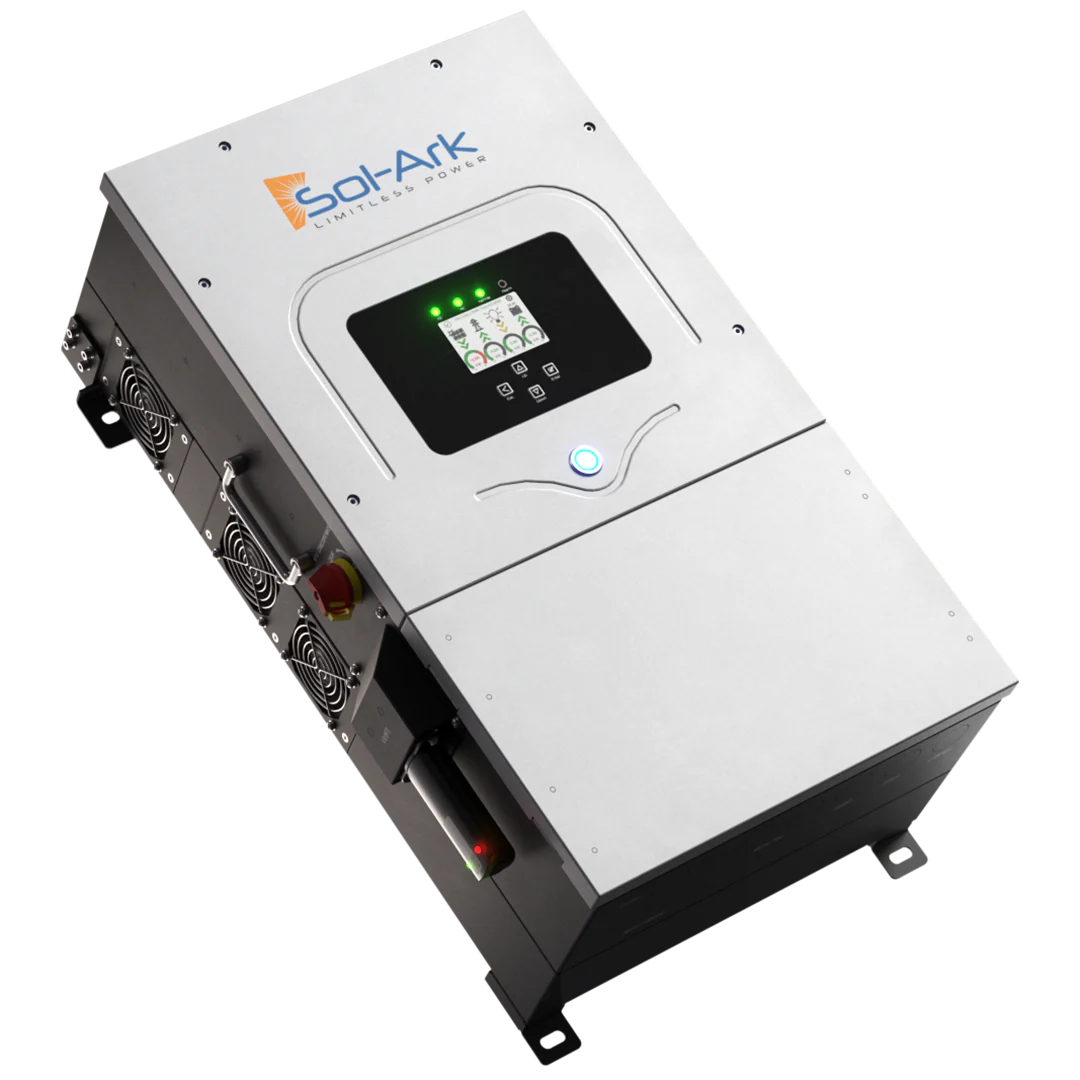

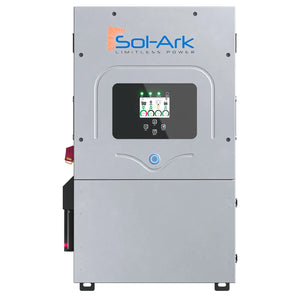

Sol-Ark 12K-2P Hybrid Solar Inverter & Battery Charger
Reliable, All-In-One Power Conversion for Canadian Solar Systems

Optimize your Canadian solar installation—whether an off-grid cabin in British Columbia or a grid-tied home in Ontario—with the Sol-Ark 12K-2P. This transformerless hybrid inverter delivers industry-leading AC output and flexible DC input for solar arrays, all in a weatherproof, stackable package.

Key Specifications

PV (DC) Input for Solar

  • Max. Allowed PV Power (STC): 13 000 W

  • Nominal MPPT Voltage Range: 175 – 425 VDC

  • Startup / Max. Input Voltage: 125 V / 500 VDC

  • MPPT Trackers: 2 independent trackers, each self-limiting at 20 A

  • PV Strings per Tracker: 2

  • Max. AC-Coupled (Grid/Generator) Input: 9 600 W

AC Output Power

  • Continuous Real Power: 9 000 W (grid-sell or load)

  • Plus DC→AC Battery Power: 3 000 W, for a total of 12 000 W available

  • Nominal Voltage Options: 120/240 VAC split-phase, 120/208 VAC, or 220 VAC

  • Max. Output Current: 37.5 A

  • Peak Off-Grid Surge (10 s): 16 000 VA @ 240 VAC

  • Peak Off-Grid Surge (100 ms): 25 000 VA @ 240 VAC

  • Grid Passthrough Current: 63 A

  • Power Factor Range: ± 0.9 adjustable

  • Backup Transfer Time: 4 ms

  • Max. Fault Current (100 ms): 104 A

Battery (DC) Input & Charging

  • Battery Technologies: Li-ion / Lead-acid

  • Nominal Battery Voltage: 48 V (operating 43 – 63 V)

  • Capacity Support: 50 – 9 900 Ah

  • Max. Charge/Discharge Current: 185 A

  • 3-Stage Charging with EQ: 96 % grid-to-battery efficiency

  • Integrated BMS & Shunt: Cell-level monitoring, temperature sensing, auto genset start via CANbus & RS-485

Design & Certifications

  • Transformerless DC→AC Design for higher efficiency (Max 97.5 %, CEC 96.5 %)

  • Stackable: Up to 9 units in parallel for multi-kilowatt systems

  • Protection: IP65 / NEMA 3R enclosure, ground-fault, rapid-shutdown, arc-fault, built-in PV/DC disconnects & breakers

  • Certifications: UL 1741, IEEE 1547, CSA & NEC compliance for Canadian installations

Physical & Environmental

  • Size: 750 × 450 × 254 mm (29.5 × 17.7 × 10 in)

  • Weight: 35.4 kg (78 lb)

  • Ambient Temp.: –25 °C to +55 °C (derates above 45 °C)

  • Noise: < 30 dB idle

  • Communications: Wi-Fi, LAN, CANbus, RS-485 built-in

  • Warranty: 10 years

Why Canadian Installers Choose Sol-Ark 12K-2P

From coast-to-coast solar farms to remote off-grid microgrids in the North, the Sol-Ark 12K-2P offers unbeatable PV input flexibility, robust AC output and seamless battery integration—all with Canadian-ready certifications and local support.

Order Today

Power your next solar project with the Sol-Ark advantage—contact us for pricing, lead times, and technical integration support.


DataSheet

Back to Inverters
