SKU: SA-5K-1P
Mfg. SKU: 5K-1P

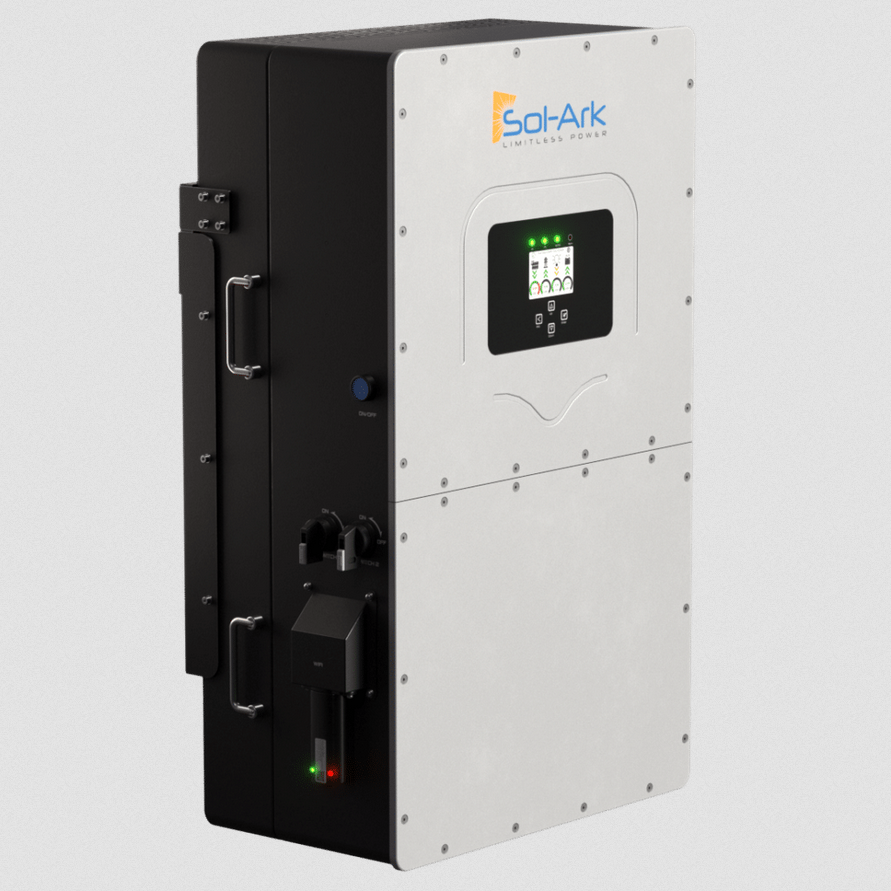

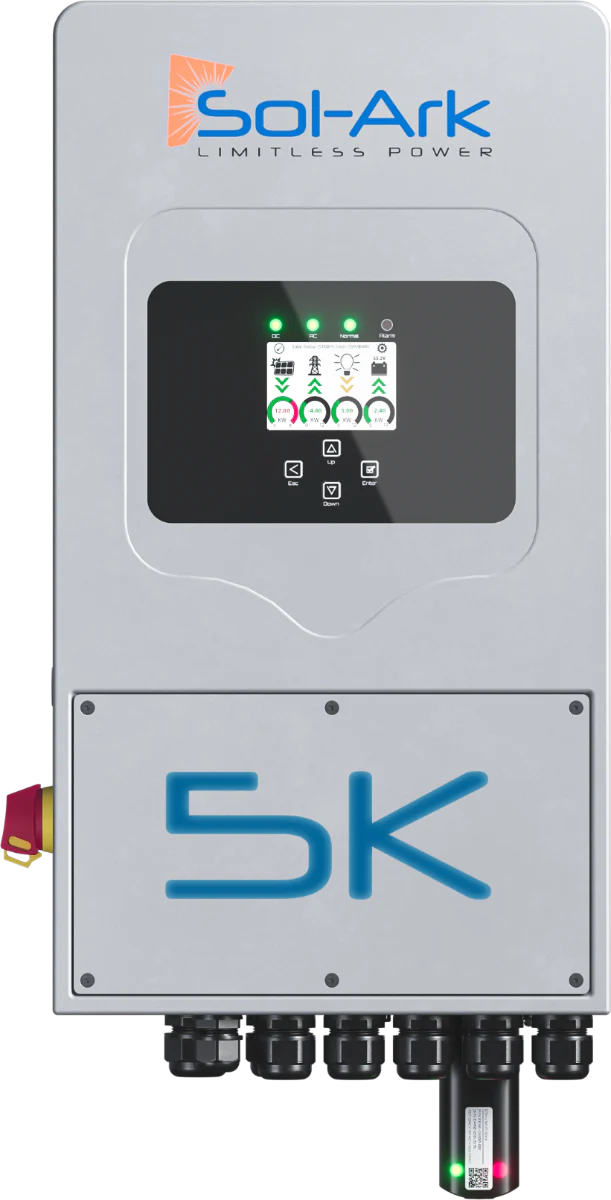

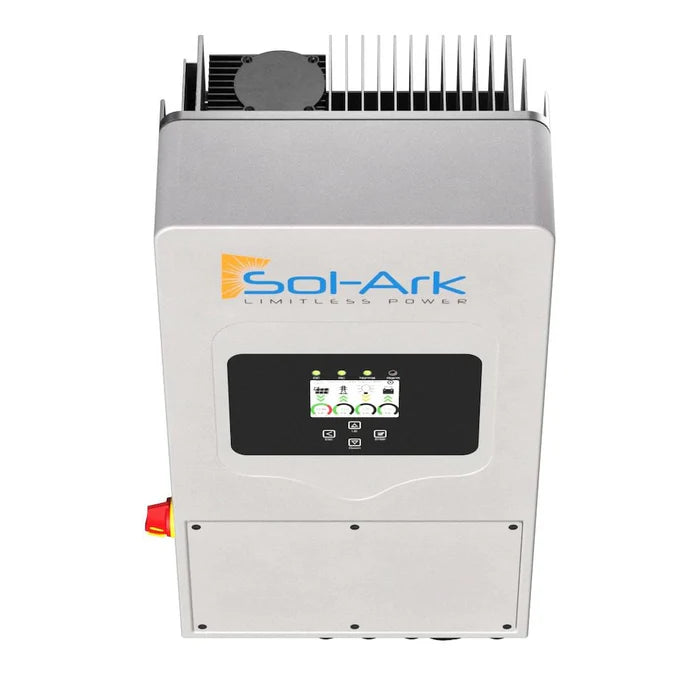

Sol-Ark 5K-1P All-In-One Hybrid Solar Inverter
Take control of your home or light-commercial solar system with the Sol-Ark 5K-1P—an industry-leading, transformer-less hybrid inverter that seamlessly switches between on-grid, off-grid, and backup modes. Engineered for Canadian roofs and garages, it delivers reliable power, advanced monitoring, and maximum solar harvest.
5 kW / 8 kW Split-Phase Output• 4 800 W continuous at 120 V; 8 000 W continuous at 240 V—perfect for North American homes and small businesses. Sol-Ark
10.4 kW PV Array Capacity• Supports up to 10 400 W of solar panels across two independent MPPT trackers (each self-limiting to 20 A, max 26 A) for optimized energy capture. Sol-Ark
48 V Battery Integration• Works with 48 V battery banks (40–60 Vdc range) of any chemistry—lead-acid to lithium—for true energy independence. Sol-Ark
Ultra-Efficient Power Conversion• Up to 97.6 % inverter efficiency and ultra-fast UPS switching (< 20 ms) keep your essential loads running through grid outages. Practical Preppers
Zero-Load Draw & Peak Shaving• Only 60 W standby consumption, plus smart load control to shave peak utility demand and slash your monthly bills. Current Connected
Robust, Weather-Ready Design• NEMA 3R-rated enclosure for outdoor/indoor use, built-in breakers, and UL 1741 SA certification for safe, code-compliant installs. Current Connected
Intuitive Monitoring & Control• Integrated LCD touchscreen plus RS485, Wi-Fi, and CAN communication make system setup and real-time performance tracking a breeze.
Hybrid Flexibility: Go off-grid at the flip of a switch, or export excess solar for net-metering savings.
Future-Proof: Add batteries or AC-couple with existing on-grid inverters without rewiring.
Reliability: Engineered for Canada’s climate, from Alberta winters to Ontario heat.
Cost Savings: Peak shaving, low standby draw, and high PV input maximize ROI on your residential solar investment.
Brochure
Datasheet
