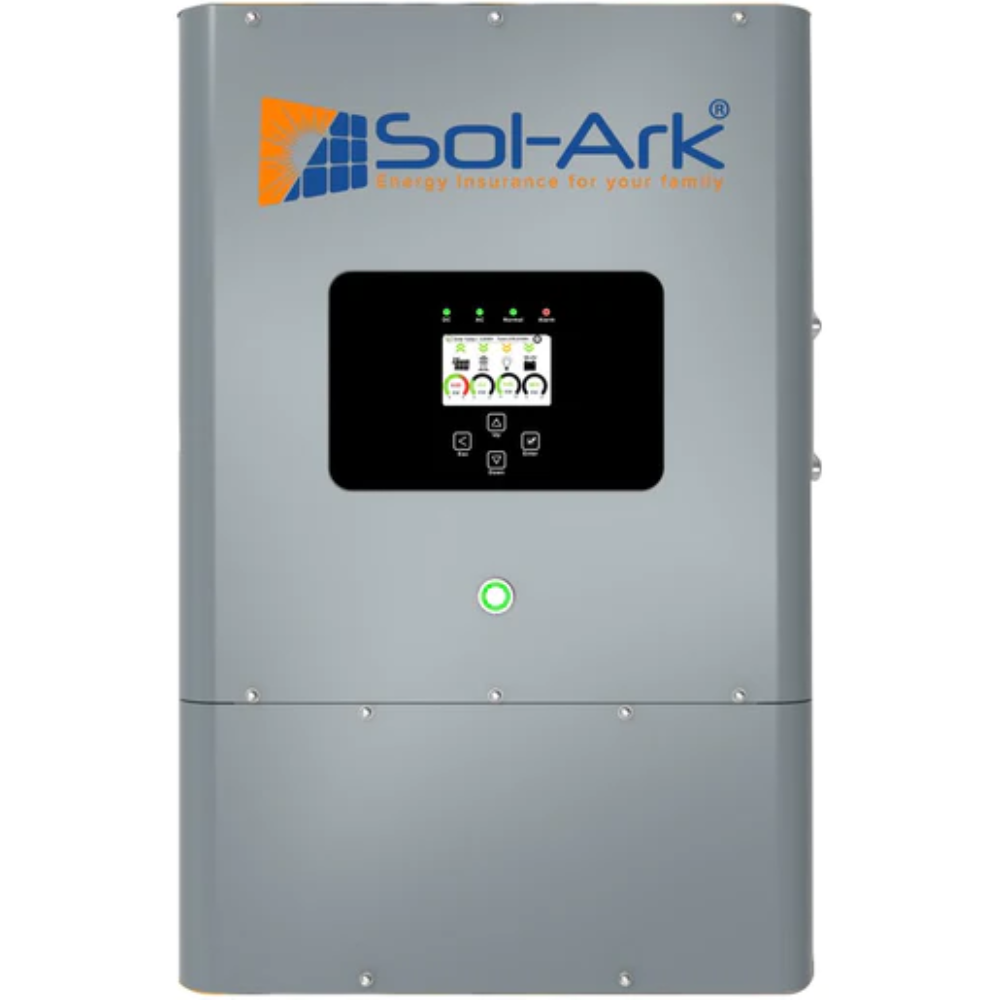

SOL-ARK SA-12K 120/240/208V Solar Inverter Charger
SOL-ARK SA-12K 120/240/208V Solar Inverter Charger
SOL-ARK SA-12K 120/240/208V Solar Inverter Charger

SOL-ARK SA-12K 120/240/208V Solar Inverter Charger

Regular price
$7,250.00
Sale price
$7,250.00
Quantity must be 1 or more

Description

Sol-Ark 12kW 120/240/208V Hybrid All-in-One Stackable Inverter, SA-12K

“The Swiss-Army Knife" of inverters

Features:

  • Remote programmable monitoring and configuration included
  • Next Generation Efficiency
  • 93% RTE - The most efficient in the world in/out of batteries
  • 120/240V single/split phase and 120/208V three-phase in the same unit
  • Stackable up to nine in parallel
  • Works with any generator
  • Works with any battery
  • Easy AC-couple retrofit
  • No microinverters, no optimizers necessary on new installs
  • All-in-One box
  • Easy plug 'n play install and inventory management
  • Everything needed for Grid Tied, Hybrid, or Off-Grid inside
  • Manages power from Solar, Battery, Grid, Load, and Generator simultaneously
  • 10-Year Standard Warranty Included

Technical Specifications

Continuous AC Power Output: 9000 KW
Max Operating Voltage: 425 V
Min Operating Voltage: 150 V
AC Frequencies: 50/60 Hz
Topology: Transformerless
Maximum DC Input Current: 50 A
Peak Efficiency: 97 %
CEC Efficiency: 96.5 %
Number of MPPT's: 2
Enclosure Ratings: NEMA-3R

Full PDF
