SKU: UZ-L051100-LFP-B
Mfg. Part No.: L051100-LFP-B
UZ Energy Power Lite-U L051100-B – 51.2V 5.12kWh LiFePO₄ Server Rack Battery (UL 9540A, Complete Kit, Canada)
The UZ Energy Power Lite-U L051100-B is a 51.2V 5.12kWh lithium iron phosphate (LiFePO₄) server rack battery designed for stationary energy storage systems across Canada and North America. Ideal for solar + storage, grid-tied ESS, hybrid inverter systems, and commercial battery installations, this battery is built for long cycle life, safety, and scalable performance when paired with a compatible inverter or PCS.
Built with EVE Energy LFP cells and an advanced integrated Battery Management System (BMS), the Power Lite-U is engineered for professional Canadian ESS deployments, where safety, compliance, and real-world reliability matter.
Each battery ships as a complete, ready-to-install package, including mounting hardware, communications, and power cabling—reducing installation time and eliminating the need to source third-party accessories.
Safety & Compliance – Canada & North America
-
UL 1973 – Battery safety certification
-
UL 9540A – Thermal runaway and fire propagation test method
-
UN 38.3 – Transportation compliance
UL 9540A testing supports alignment with Canadian and North American fire-safety expectations for energy storage installations, particularly for indoor and rack-mounted ESS systems. Final system approval depends on inverter certification, system design, and AHJ (Authority Having Jurisdiction) acceptance.
Volume Pricing & Savings (CAD)
| Quantity |
Price per Unit (CAD) |
Savings per Unit |
Total Savings |
| 1–3 |
$1,495 |
— |
— |
| 4 & More |
$1,299 |
$196 |
$784+ |
Battery Performance Overview (Server Rack ESS Standard)
-
Chemistry: LiFePO₄ (LFP)
-
Cell Manufacturer: EVE Energy
-
Nominal Voltage: 51.2V
-
Rated Capacity: 100Ah
-
Rated Energy: 5.12kWh
-
Usable Depth of Discharge: Up to 100%
-
Standard Charge / Discharge Current: 60A (0.6C)
-
Max Continuous Discharge Current: 100A (1C)
-
Cycle Life: Up to 6,000 cycles (0.5C @ 25°C, 90% DoD)
-
Warranty: 10 years
This battery follows the industry-standard 51.2V server rack battery architecture, making it compatible with modern ESS designs commonly deployed across Canada.
Operating Temperature Range (Canadian Conditions)
-
Charging: 0°C to 55°C (32°F to 131°F)
-
Discharging: -20°C to 55°C (-4°F to 131°F)
-
Storage: -20°C to 55°C (-4°F to 121°F)
As with all lithium iron phosphate batteries, charging below 0°C is not permitted and is managed by the BMS. For Canadian installations, this battery is best suited for indoor utility rooms, basements, garages, or temperature-controlled ESS spaces, where charging temperatures remain within specification.
Inverter & System Integration (Canada-Ready)
The Power Lite-U L051100-B is designed to operate through a compatible hybrid inverter or power conversion system (PCS) and must not be connected directly to PV strings.
-
BMS Communication: CAN / RS485
-
Dry Contact: Supported
-
Monitoring: Wi-Fi dongle included
-
System Control: Closed-loop BMS communication recommended
For grid-tied systems in Canada, the inverter must be CSA / UL certified and support UZ Energy’s BMS communication protocol or be explicitly approved for compatibility.
Complete Package – What’s Included (No Hidden Accessories)
Each battery ships with all essential installation components, making it a true plug-and-integrate ESS battery:
Mechanical & Mounting
Power Cabling
Communication & Control
Monitoring
This complete-kit approach simplifies installation, reduces commissioning errors, and lowers total system cost.

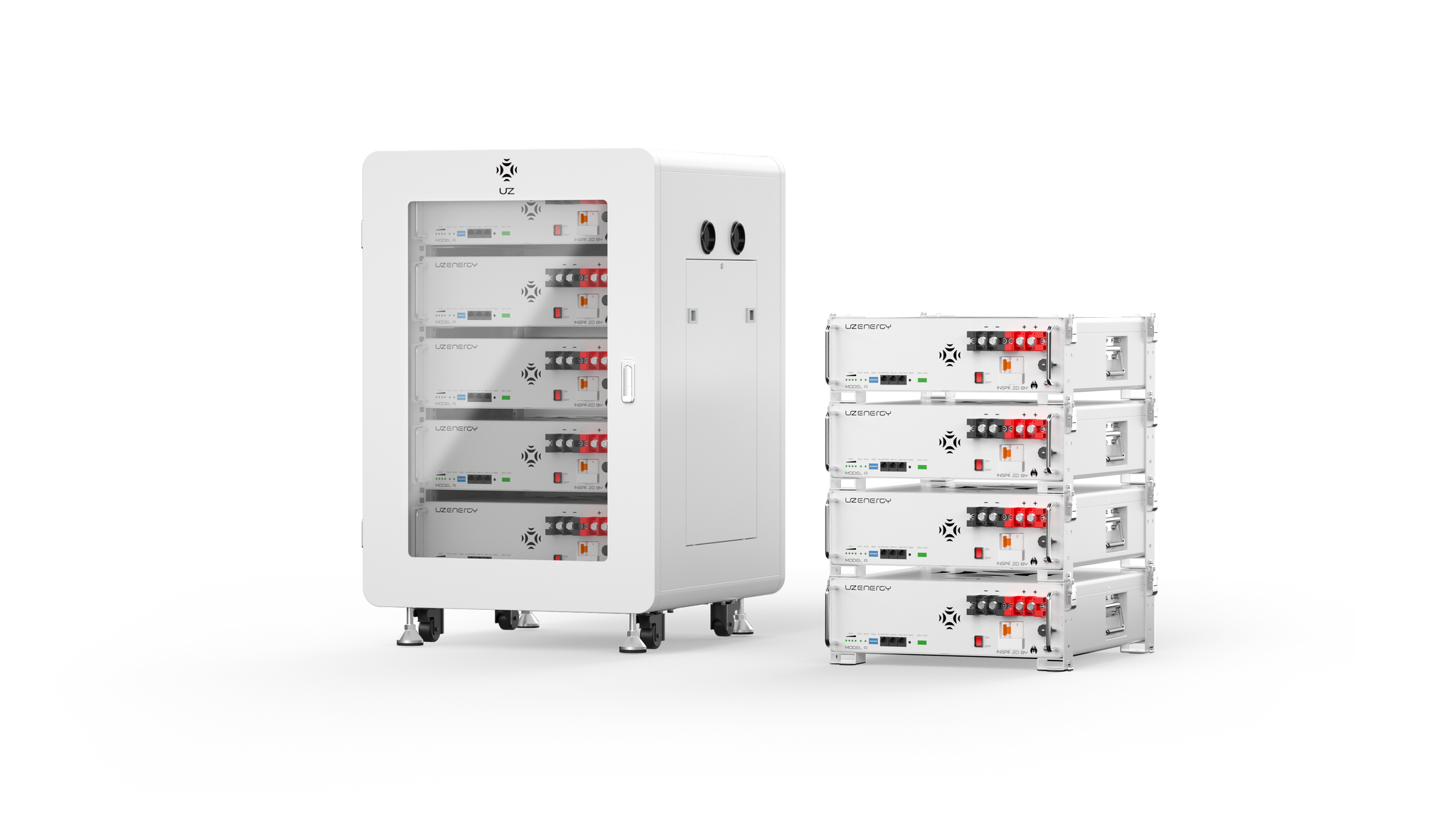

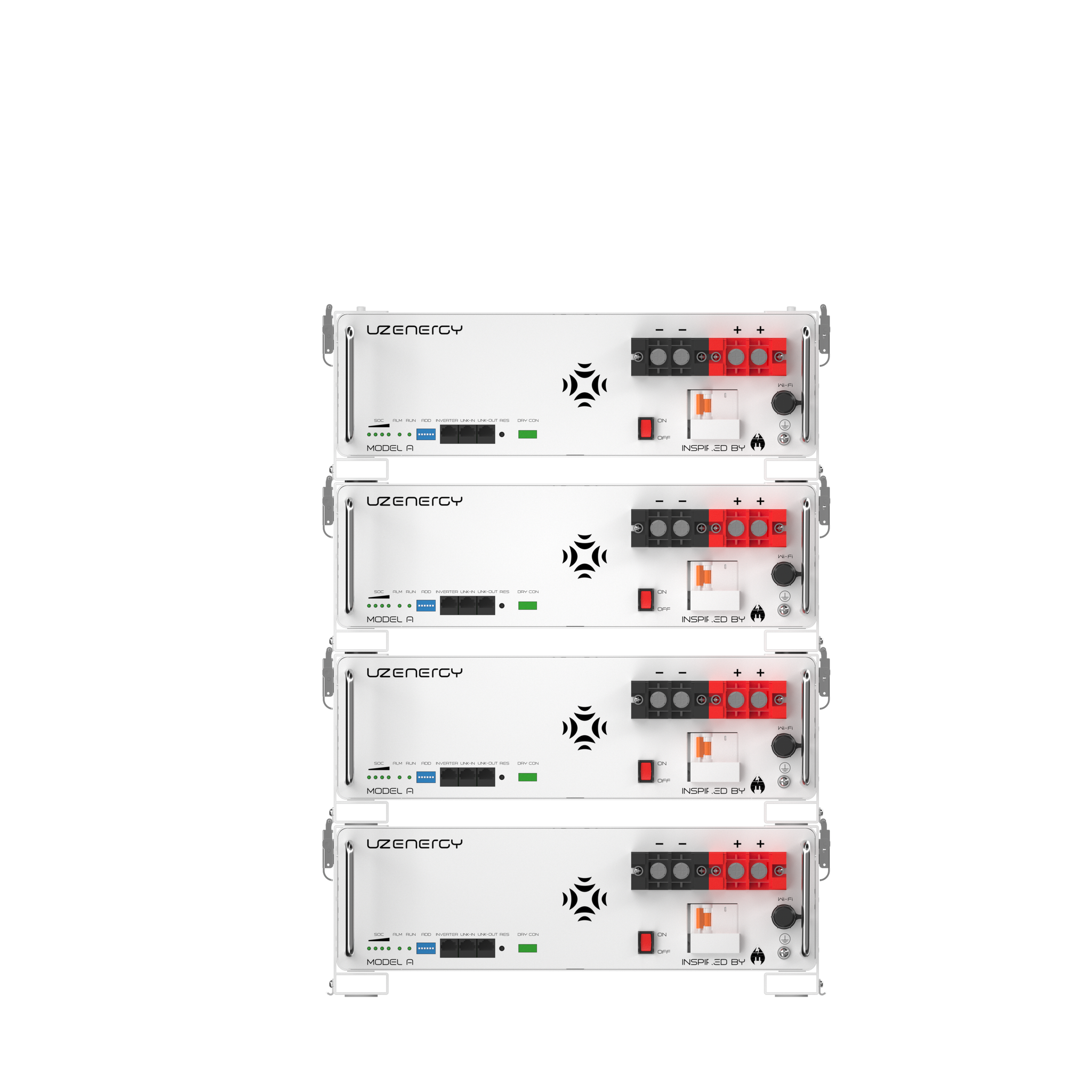

Modular & Scalable Server Rack Battery Design
-
Parallel operation supported (up to 32 units)
-
Master / slave configuration
-
19-inch server rack compatible (3U height)
-
Compact footprint for high-density ESS installations
Ideal for scaling from single-battery residential backup systems to multi-rack commercial energy storage projects across Canada.
Typical Canadian Applications
-
Residential solar + battery systems
-
Grid-tied ESS with hybrid inverters
-
Whole-home backup power
-
Commercial and light-industrial energy storage
-
Microgrids and remote power systems
-
UPS and emergency backup applications
Why Choose UZ Energy Server Rack Batteries in Canada?
-
Designed for North American and Canadian ESS standards
-
UL-compliant for safety and fire review
-
Long cycle life LFP chemistry
-
Professional-grade server rack form factor
-
Complete installation kit included
-
Trusted by installers and system designers
Why Buy From Us (Canada)?
We specialize in solar and energy storage solutions for Canada. Our team supports homeowners, installers, and EPCs with:
-
Inverter compatibility guidance
-
AHJ-safe system design support
-
Canadian climate considerations
-
Real-world ESS experience
If you’re searching for a 51.2V server rack battery in Canada, a UL 9540A-tested LFP battery, or a scalable ESS battery for Canadian conditions, the UZ Energy Power Lite-U L051100-B is a professional, compliant solution.
