SKU: SSS-GM-XX
1 x Leg
2 Solar Panels need 2 Legs (A-FRAMES).
Additional Leg for every 2 additional Solar Panels
Compatible with panels that are 80" long or less

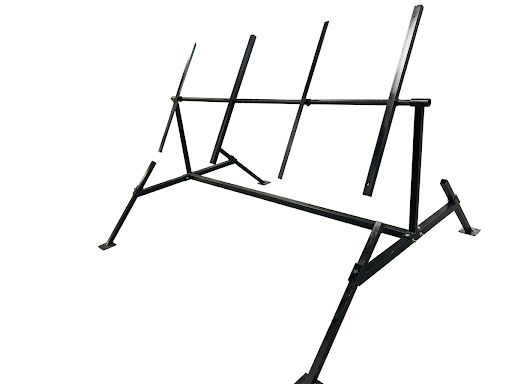

The SSS-GM Adjustable A-Frame is a durable, high-performance ground mounting solution engineered for the demands of the Canadian climate and beyond. Designed for flexibility, it can support installations ranging from a single solar module to larger arrays. Its tool-minimal design allows for quick, straightforward setup, making the transition to solar faster and more efficient.
Configuration Guide
The units are sold based on the number of solar modules they can carry: 2M for two modules, 4M for four modules, and so on.
Base Setup:The base configuration for the first two modules includes two legs (A-frames) and connector rails. The system can be extended to accommodate additional modules by adding one extra leg and connector rails for every additional pair of modules. For example, selecting 4M instead of 2M adds the required components to support four modules.
Seasonal Optimization: Easily adjust the tilt angle from 0° to 90° in seconds to maximize energy harvest as the sun's path changes throughout the year.
Snow-Ready Design: Features a 12"–18" ground clearance to prevent snow buildup and maintain airflow, ensuring your panels stay clear and cool.
Universal Fit: Compatible with most 60-cell and 72-cell modules (up to 45" wide) using standard clamp systems.
