SKU: SR-MC2450N10
Mfg. SKU: MC2450N10
**Requires either a RM-6 or a BT-2 to provide a digital display**

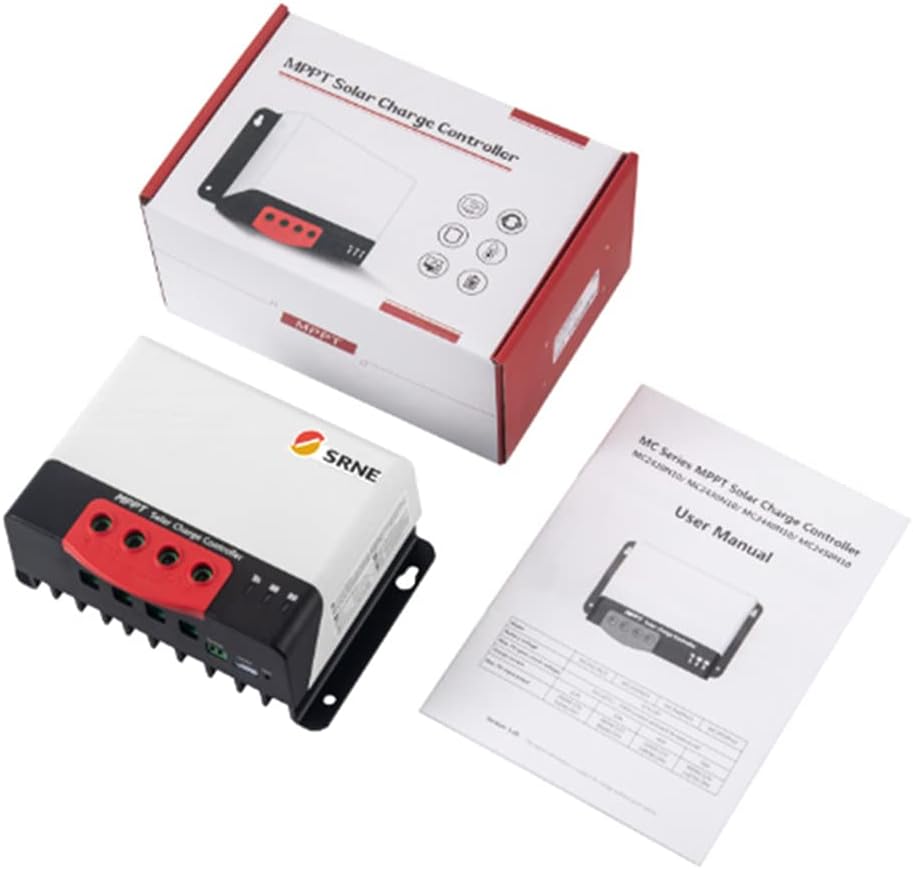

SRNE MPPT Charge Controller 12V/24V 50A Common Negative
Scale up mid-size Canadian solar systems with the SRNE MC2450N10—a 12/24 V, 50 A MPPT controller built for coast-to-coast durability. From Vancouver’s rain-soaked rooftops to Newfoundland’s icy outposts, its high-efficiency tracking and robust design ensure reliable battery charging in any climate.
Max. PV Input Power: 660 W @ 12 V / 1320 W @ 24 V for larger array configurations
Wide MPPT Voltage Range: (Battery voltage + 2 V) – 72 V adapts to varying solar conditions
High Tracking Efficiency: > 99 % MPPT tracking; ≤ 98 % conversion efficiency under load
Multi-Chemistry Support: FLD, GEL, LI, SLD, and user-defined battery profiles
Smart Load Control: Light, timer, manual, and debugging modes for lighting and device management
Rugged & Weather-Ready: IP32 enclosure; operates from –35 °C to +60 °C (–31 °F to +140 °F)
Compact & Portable: 183 × 127 × 69.5 mm (7.2 × 5.0 × 2.7 in); 1.335 kg (2.94 lb)
Display Options: RM-6 for on-site monitoring
Bluetooth BT-2 Module: Mobile-app connectivity for remote data viewing
Communication Ports: TTL, USB-TTL, RS485, and optional RV-C CAN protocol
Temperature Sensor: Enables temperature-compensated charging for battery longevity
Remote display
Bluetooth adapter
DataSheet
